MatMeas High Precision Piezoelectric Ceramic Parameter Analyzer PCA1000
PCA1000 analyzer measures dielectric and piezoelectric parameters of ceramic materials using resonance analysis with high precision and intelligent sweep frequency testing.

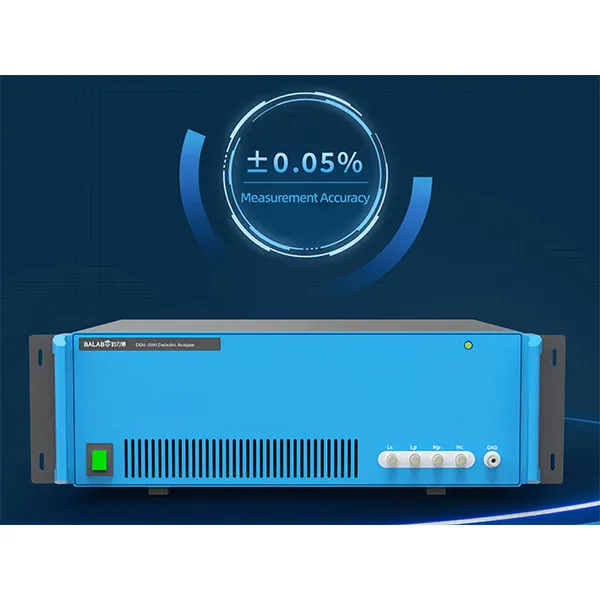

- High precision measurement accuracy up to ยฑ0.05%
- ย Intelligent automatic frequency sweep analysis
- ย Realโtime visualization of impedance and dielectric spectra
- Comprehensive analysis of piezoelectric material parameters
โข Compact integrated design for laboratory and production testing
MatMeas Piezoelectric Ceramic Analyzer Description
The PCA1000 Piezoelectric Ceramic Parameter Analyzer from MatMeas is designed to evaluate the comprehensive performance parameters of piezoelectric ceramics using resonance analysis technology. The system enables fast and intuitive measurement of dielectric constants, mechanical quality factors, electromechanical coupling coefficients and frequency characteristics. It is widely used in research laboratories and industrial production lines to analyze piezoelectric materials, improve product quality and accelerate material development.
MatMeas PCA1000 Piezoelectric Analyzer Technical Data
| Parameter | Value |
| Dielectric Parameters | Z, ฮธ, C, D, ฮตโ, ฮตโ, tgฮด, Zโ, Zโ, ColeโCole |
| Piezoelectric Parameters | kp, kt, k31, k33, Qm, d31, d33, d15 |
| Characteristic Frequencies | fr, fa, fs, fp, fm, fn |
| Equivalent Circuit | C0, C1, R1, L1 |

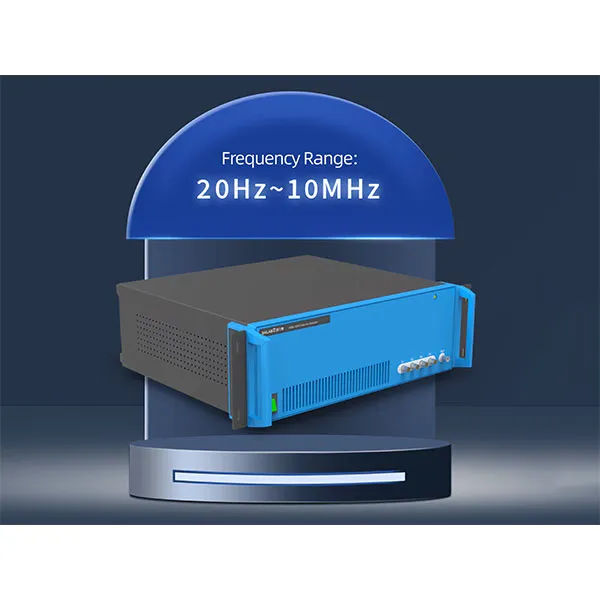

| Frequency Range | 20 Hz โ 10 MHz |
| Measurement Accuracy | ยฑ0.05 % |
| Sample Size | ฯ โค 20 mm, thickness โค 5 mm |
| Instrument Dimensions | 340 ร 336 ร 147 mm |
| Power Supply | 220 V / 50โ60 Hz |
| Weight | 3 kg |
| Warranty | 1 Year |
MatMeas Piezoelectric Material Analyzer Applications
- ย Piezoelectric ceramic material research
- ย Ferroelectric and dielectric material testing
- ย Electronic component development
- ย University and research institute laboratories
- Industrial quality control of piezoelectric components
PCA1000 Piezoelectric Analyzer Video
More Details
PCA1000 Analyzer Features
The PCA1000 system integrates measurement fixtures, data acquisition and analysis software into a single platform. It allows researchers to quickly obtain key dielectric and piezoelectric parameters of ceramic materials.
PCA1000 Intelligent Sweep Technology
The analyzer performs intelligent frequency sweeping to obtain impedance spectra and dielectric spectra. This helps engineers evaluate resonance characteristics and optimize piezoelectric material performance.
PCA1000 Visualization and Data Analysis

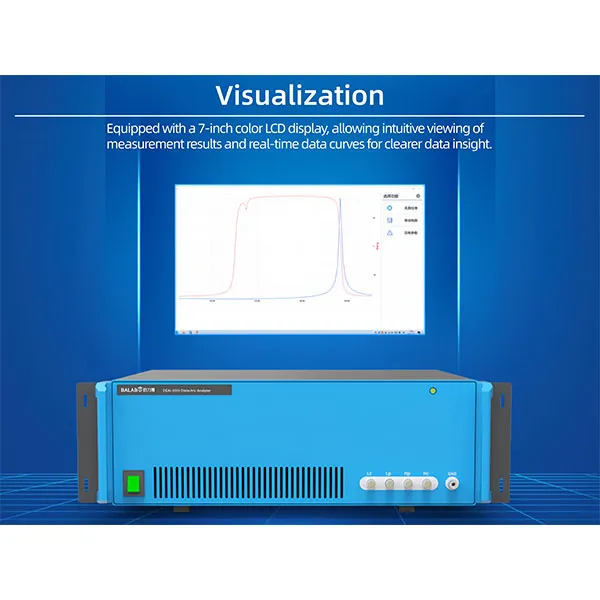

The software interface displays realโtime curves, ColeโCole plots and equivalent circuit models, enabling efficient interpretation of measurement results.
