MatMeas DTS1000 High-Temperature Dielectric Impedance Spectrometer | Dielectric Property Analyzer up to 800°C
The MatMeas DTS1000 High-Temperature Dielectric Impedance Spectrometer is designed for accurate dielectric property characterization of materials from room temperature up to 800°C. With a frequency range of 10 Hz–10 MHz and high-precision temperature control, the system provides reliable dielectric constant and loss measurements for ceramics, polymers, and advanced functional materials.
1. High-Temperature Dielectric Measurement up to 800°C
2. High-Purity Platinum Electrodes
3. Integrated Metal Shielding Structure
4. Optimized Thermal Field Design
5. Real-Time Temperature Monitoring
6. Precise Temperature Control
MatMeas DTS1000 High-Temperature Dielectric Impedance Spectrometer

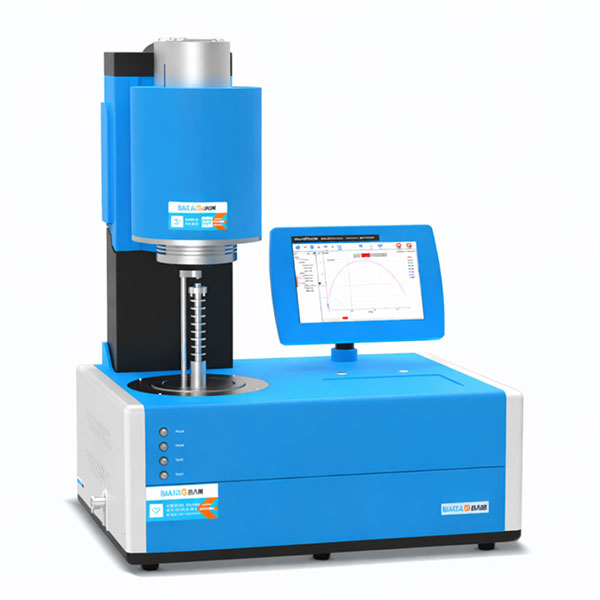

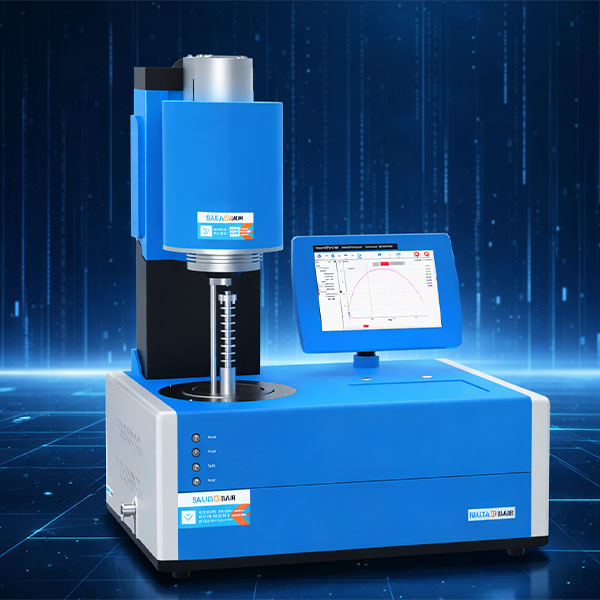

MatMeas DTS1000 High-Temperature Dielectric Impedance Spectrometer is a precision measurement system developed for analyzing the dielectric properties of materials under elevated temperatures.
The instrument integrates a high-temperature furnace, precision electrode system, and impedance measurement module to provide reliable dielectric constant and dielectric loss characterization over a wide temperature and frequency range.

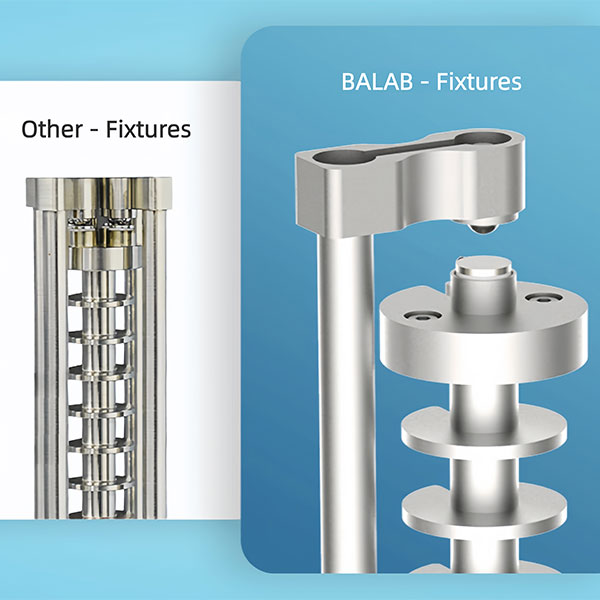

Inspired by the thermal field design concept of modern thermal analyzers, the DTS1000 adopts a vertical furnace structure with a fixed sample holder to ensure excellent temperature stability and measurement repeatability.
This system is widely used in the research and development of ceramic materials, dielectric materials, electronic components, and advanced functional materials.
DTS1000 High-Temperature Dielectric Impedance Spectrometer Technical Data Sheet
| Parameter | Specification |
| Temperature Range | Room Temperature – 800°C |
| Temperature Control Accuracy | ±1°C |
| Heating Rate | 0–10°C/min (Typical 3°C/min) |
| Frequency Range | 10 Hz – 10 MHz |
| Heating Method | Resistance Wire Heating |
| Electrode Material | High-Purity Platinum |
| Sample Size | Diameter ≤ 20 mm, Thickness ≤ 5 mm |
| Measurement Environment | Air / Flowing Gas / Vacuum |
| Power Supply | 220 V, 50–60 Hz, 1600 W |
| Dimensions | 480 × 320 × 830 mm |
| Weight | 46 kg |
| Warranty | 1 Year |
Get a Quote for MatMeas DTS1000 system
Share your sample type and temperature/frequency requirements—we will recommend the best configuration and testing workflow.
MatMeas DTS1000 system is widely used in research laboratories and industrial material characterization.
1. Advanced Ceramic Materials ：Measurement of dielectric constant and loss behavior in ferroelectric ceramics, piezoelectric ceramics, and dielectric substrates.
2. Electronic Materials：Characterization of dielectric performance for capacitor materials, insulating materials, and semiconductor substrates.
3. Polymer Dielectrics：Analysis of temperature-dependent dielectric properties of polymer films and composite dielectric materials.
4. Energy Storage Materials ：Investigation of dielectric properties in energy storage ceramics and dielectric capacitors.
5. Functional Materials Research：Study of temperature-dependent dielectric behavior in novel functional materials and advanced electronic materials.
