MatMeas CPS7000 Cryogenic Vacuum Probe Station
MatMeas CPS7000 Cryogenic Vacuum Probe Station is a compact benchtop system for electrical characterization of dielectric, piezoelectric, ferroelectric, and optoelectronic materials under vacuum and variable temperature

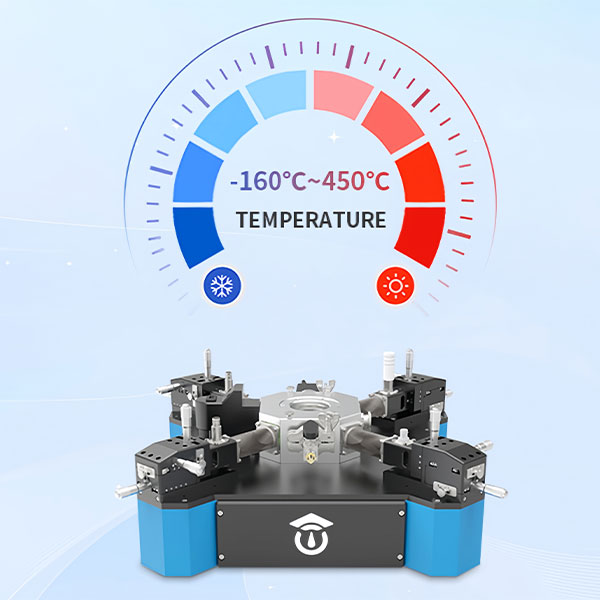

1. Wide Temperature Range: -160℃ to 450℃ with liquid nitrogen cooling
2. High Voltage & Low Current Capability
3. 4 Micro-Manipulated Probe Arms: Independently adjustable
4. Optical Access: Ø55mm quartz window for in-situ observation or optical measurements
5. Compact & Benchtop Design: Small footprint (435×435×205mm) ideal for laboratory use
MatMeas CPS7000 Cryogenic Probe Station Description
MatMeas CPS7000 Cryogenic Vacuum Probe Station – a compact benchtop system designed for precise electrical measurements of bulk, thin film, and multilayer materials. The instrument supports a wide temperature range from -160℃ to 450℃ using liquid nitrogen cooling, with excellent temperature stability (±0.5℃) and programmable ramp rates. Equipped with four micro-manipulated probe arms, it enables accurate contacting for diverse tests including dielectric, ferroelectric, piezoelectric, pyroelectric, and TSDC measurements. The CPS7000 is an essential tool for universities, research institutes, aerospace, and defense labs requiring reliable vacuum and variable-temperature probing.
MatMeas CPS7000 Cryogenic Probe Station Technical Specifications
| Parameter | Value |
| Sample Size: | φ < 40 mm, thickness < 5 mm |
| Power Supply: | 220V ±10%, 50Hz |
| Measurement Temperature | ：-160℃ ~ 450℃ |
| Operating Environment | : -10℃ ~ 50℃ |
| Number of Probe Arms: | 4 |
| Cooling Method: | Liquid Nitrogen |
| Temperature Control Accuracy | ±5°C |
| Heating Rate Slopes | 0 ~ 10℃/min (typical 3℃/min) |
| Cooling Rate: | 1 ~ 10℃/min (programmable) |
| Optical Viewport: | φ55 mm quartz glass |

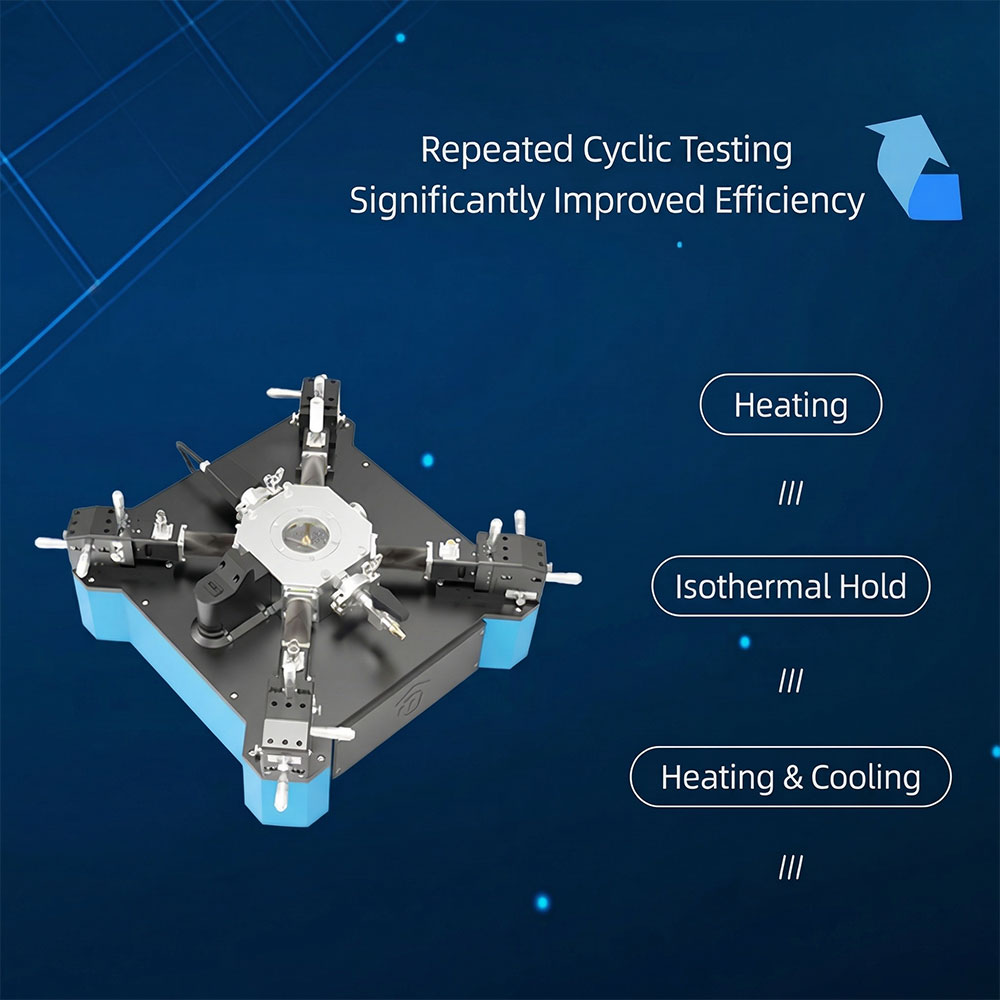

| Temperature Control Modes: | Heating,constant temperature, Heating/Cooling Cycling |
| Measurement Modules: | Dielectric, Resistance, Pyroelectric, TSDC |
| Operation Mode: | Semi-automatic |
| Equipment size | 435 × 435 × 205 mm (L × W × H) |
| Weight | 32kg |
| Warranty | 1 Year |
Request a Quote for FCP Poling System
Contact us for factory-direct pricing and technical consultation.
Applications of CPS7000 Cryogenic Probe Station
1. Ferroelectric & Piezoelectric Materials
2. Dielectric Thin Films
3. Pyroelectric & TSDC Studies
4. Optoelectronic Materials
5. Semiconductor Devices
6. Multiferroic & Memristor Research
