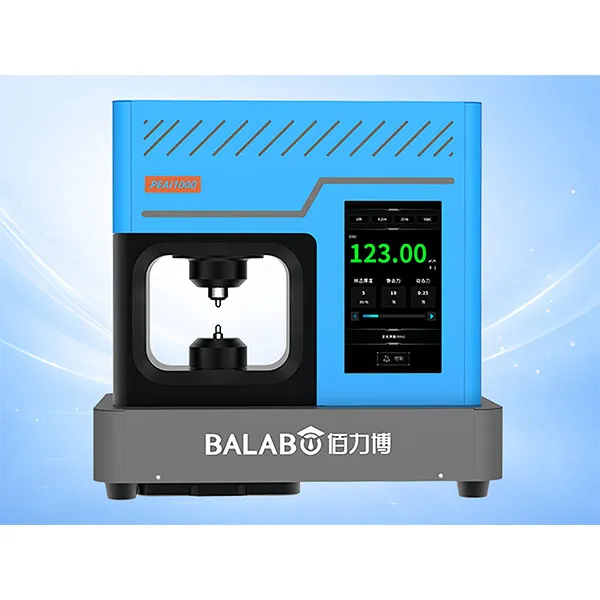

MatMeas High Precision Piezoelectric Analyzer – d33 d31 Measurement System
MatMeas PEAI1000 piezoelectric analyzer for accurate d33 and d31 measurement in research laboratories.
High precision measurement; Lock‑in amplifier noise suppression; Dynamic force testing; Visual touchscreen operation; Integrated compact design
MatMeas Piezoelectric Analyzer Description
The MatMeas PEAI1000 piezoelectric analyzer is designed for precise measurement of piezoelectric coefficients including d33 and d31 using advanced dynamic measurement technology. The system integrates lock‑in amplifier signal processing to suppress noise and ensure highly stable measurement results. It is widely used in piezoelectric ceramic research, sensor development, materials science laboratories and industrial quality inspection of piezoelectric components.
MatMeas Piezoelectric Analyzer Technical Data Sheet
| Measurement Range | 0–2000 pC/N |
| Frequency Range | 110 Hz |
| Minimum Resolution | ±0.1 Hz |

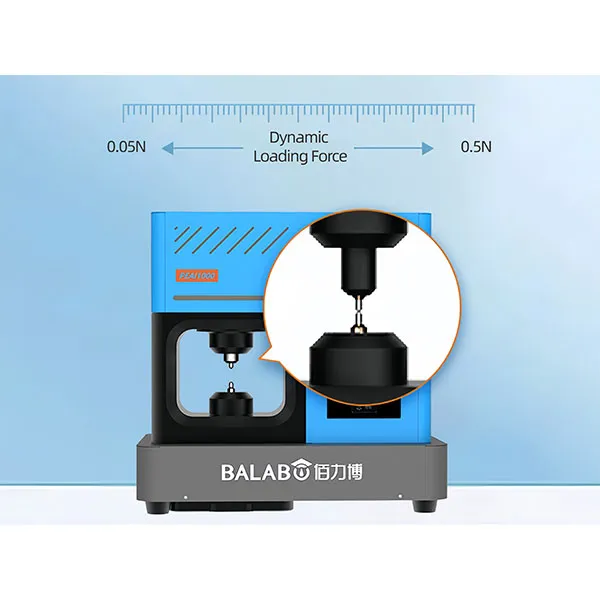

| Dynamic Test Force | 0.05–0.5 N |
| Static Clamping Force | 0–10 N |
| Measurement Speed | Fast / Medium / Slow |
| Measurement Accuracy | ±2% |
| Calibration Frequency | 110 Hz |
| Sample Size | Φ < 40 mm , thickness < 20 mm |
| Device Size | 376 × 217 × 357 mm |
| Power Supply | 220V 50–60Hz |
| Power Consumption | 600 W |
| Weight | 30 kg |
| Warranty | 1 Year |
Get Free Quote for Piezoelectric Analyzer
Contact MatMeas engineers for testing solutions
Piezoelectric Analyzer Applications
Piezoelectric material research, piezoelectric ceramic manufacturing, sensor and actuator development, aerospace materials testing, semiconductor and electronic component laboratories.
Piezoelectric/ Analyzer Testing Video
Warning: Trying to access array offset on value of type null in /www/wwwroot/matmeas.com/wp-content/plugins/elementor/includes/widgets/video.php on line 1203
More Details

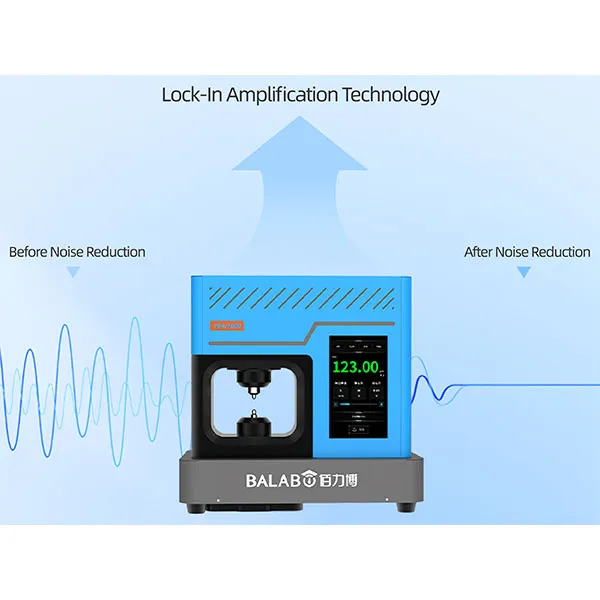

PEAI1000 Piezoelectric Analyzer Features: Dynamic measurement method ensures high accuracy. Lock‑in amplifier technology improves signal detection and reduces environmental noise. Integrated mechanical fixture applies consistent dynamic force from 0.05N to 0.5N for reliable measurements. PEAI1000 Piezoelectric Analyzer Specifications: measurement range 0–2000 pC/N, frequency 110 Hz, measurement accuracy ±2%, sample size Φ<40 mm thickness <20 mm, power supply 220V 50–60Hz.
