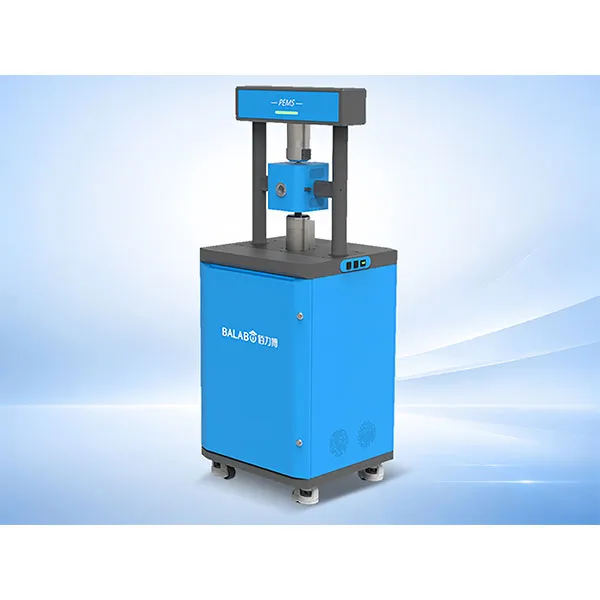

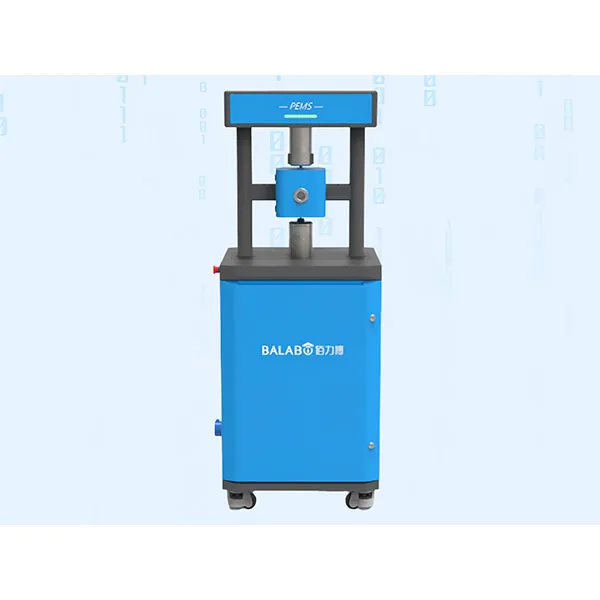

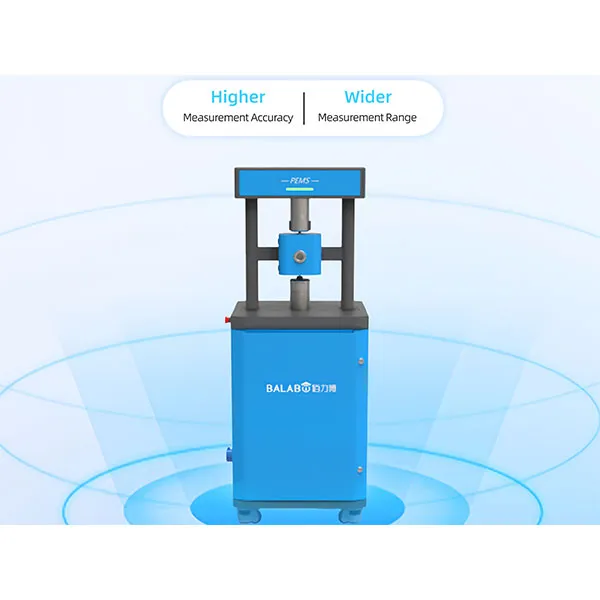

MatMeas High Precision In‑situ d33 Piezoelectric Measurement System – PEMS Analyzer
MatMeas PEMS is a high‑precision in‑situ d33 piezoelectric measurement system for advanced material characterization.
High‑precision d33 measurement; Multiple parameter analysis (d33,d31,d15); Equivalent circuit measurement C1 L1 R1 C0; Resonance frequency analysis; Dynamic force testing; Multi‑range calibration; RS232 & USB communication; Integrated design
MatMeas Piezoelectric d33 Measurement System Description
The MatMeas PEMS precision in‑situ d33 measurement system is designed for advanced characterization of piezoelectric materials. The system integrates dynamic direct traceability technology and AC resonance vibration evaluation to measure piezoelectric parameters with higher accuracy and reliability than traditional quasi‑static d33 meters. It supports measurement of multiple sample shapes such as discs, rings, tubes, blocks and strips, making it suitable for research institutes, material laboratories and industrial piezoelectric component production.
MatMeas PEMS Piezoelectric Analyzer Technical Data Sheet
| Force Frequency | 30 Hz – 300 Hz |
| Default Frequency | 110 Hz |
| Frequency Accuracy | 0.1 Hz |
| FAST Mode | 2 s to 1% of final reading |
| MEDIUM Mode | 5 s to 1% of final reading |
| SLOW Mode | 10 s to 1% of final reading |
| Communication Interface | RS232, USB |
| Power Supply | 220–240V AC 50–60Hz 0.5A |
| Alternative Power | 100–120V AC 50–60Hz 1A |
| Storage Temperature | 0°C – 50°C |
| Operating Temperature | 10°C – 40°C |
| Calibration Temperature | 25°C |
| Instrument Size | 600 × 540 × 1530 mm |
| Measurement Unit Size | 350 × 250 × 100 mm |
| Force Unit Size | 145 × 150 × 175 mm |
Get Free Quote for Piezoelectric Analyzer
Contact MatMeas engineers for testing solutions
Piezoelectric Analyzer Applications
Piezoelectric ceramic research; sensor and actuator development; aerospace and defense materials testing; semiconductor laboratories; advanced materials research institutes; industrial quality inspection of piezoelectric components.
PEMS Piezoelectric Measurement System Video
Warning: Trying to access array offset on value of type null in /www/wwwroot/matmeas.com/wp-content/plugins/elementor/includes/widgets/video.php on line 1203
More Details
PEMS Piezoelectric Analyzer Features: Supports measurement of d33, d31 and d15 coefficients. Measures equivalent circuit parameters including C1, L1, R1 and C0 and resonance frequencies fs, fp, fm, fn, fa and fr. Dynamic force measurement enables analysis of d33 variation under different preload conditions. PEMS Piezoelectric Analyzer Specifications: measurement frequency 30–300 Hz, default 110 Hz, communication interfaces RS232 and USB, measurement accuracy high precision with repeatable results for laboratory and industrial environments.
