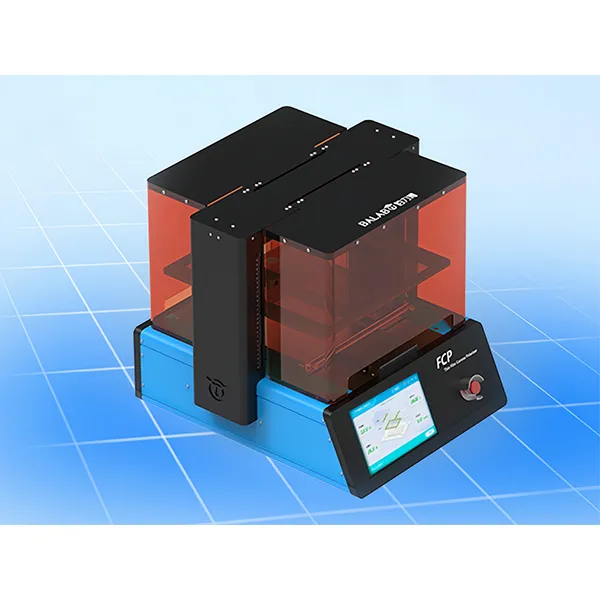

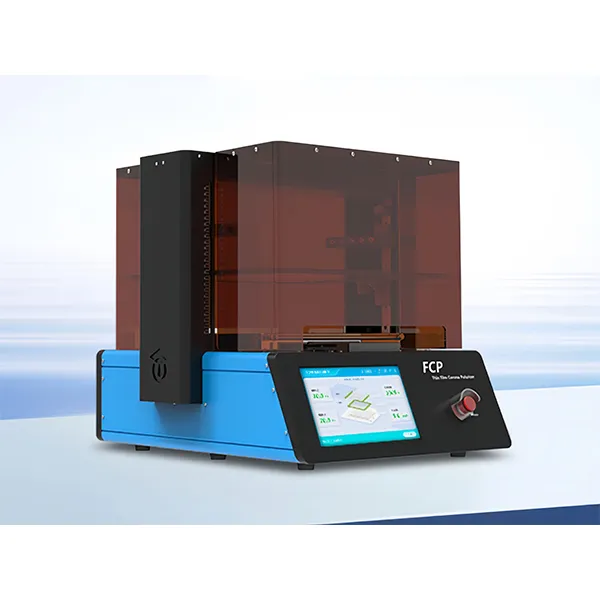

MatMeas FCP High Voltage Film Corona Poling System
MatMeas FCP Film Corona Poling System, featuring an independent power module and intelligent fixture control, enables efficient and precise poling of piezoelectric polymer films for R&D and small-scale production.
1. High-Voltage Corona Discharge
2. Precise Temperature Control
3. Sensitive Current Monitoring
4. Accommodates A5 Samples
5. Integrated & User-Friendly Design
MatMeas FCP Film Corona Poling System Description

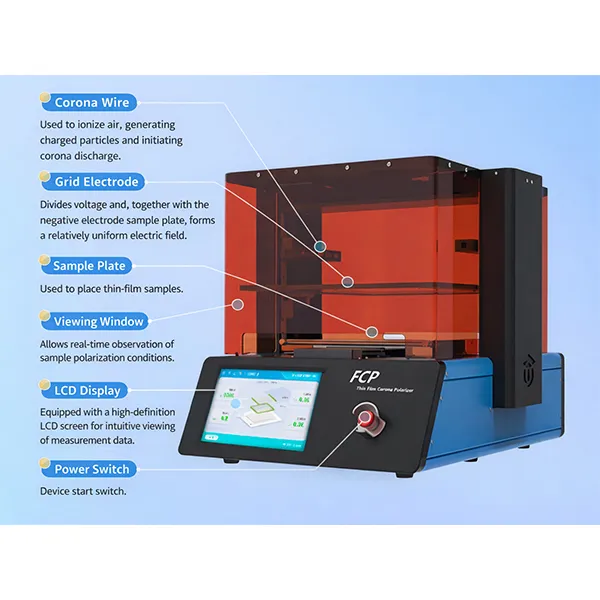

MatMeas FCP Series Film Corona Poling System, specifically engineered for laboratory-scale production of piezoelectric polymer films. This advanced system utilizes corona discharge to align dipoles in thin film materials, achieving optimal piezoelectric properties through precise control of voltage, temperature, and process monitoring. It integrates a 30kV high-voltage module, a PID-controlled heating stage (up to 180℃), and sensitive current measurement (≥100nA) to enable researchers to fine-tune poling parameters. The FCP system is widely used in R&D labs developing sensors, energy harvesters, acoustic devices, and aerospace components, offering a reliable and efficient solution for thin film poling.
MatMeas FCP Film Corona Poling System Technical Specifications
| Parameter | Value |
| Polarization Method | Corona Poling |
| Number of sample | 1pc |
| Polarization Voltage | 30 kV |
| Polarization Current | 1mA |
| Temperature Range | ≤180℃ |
| Temperature Accuracy accuracy | ±3°C |
| Heating Rate Slopes | 3/6/9°C per min |
| Temperature Control | PID Precision Control |
| Minimum Detectable Current | 100nA above |
| Voltage output accuracy | 5% |
| Sample material | Thin Film |
| Sample Size | 148mm × 210mm (A5 size) |
| Equipment size | 458 × 505 × 450 mm （L x W x H) |
| Power Supply | 220V / 50–60Hz, 600W |
| Weight | 32kg |
| Warranty | 1 Year |
| *For negative corona poling requirements, please contact us. | |
Request a Quote for FCP Poling System
Contact us for factory-direct pricing and technical consultation.
Applications of FCP Film Corona Poling System
1. Sensors & Actuators
2. Energy Harvesting & Storage
3. Acoustic Technology
4. Aerospace & Defense
5. Medical Devices
