MatMeas DMS1650 Ultra-High Temperature Dielectric Impedance Spectrometer | Dielectric Property Analyzer up to 800°C
The MatMeas DMS1650 Ultra-High Temperature Dielectric Impedance Spectrometer is designed for dielectric property characterization of materials under extreme temperatures. The system integrates a high-temperature furnace, measurement fixture, and analysis software, enabling precise dielectric constant, dielectric loss, and impedance spectroscopy measurements across a wide frequency range.
1.Ultra-high temperature dielectric measurement capability
2. High precision temperature control system
3. Integrated instrument design for stable measurement
4. Wide frequency dielectric spectroscopy analysis
5. Reliable measurement performance with factory calibration
MatMeas DMS1650 Ultra-High Temperature Dielectric Impedance Spectrometer

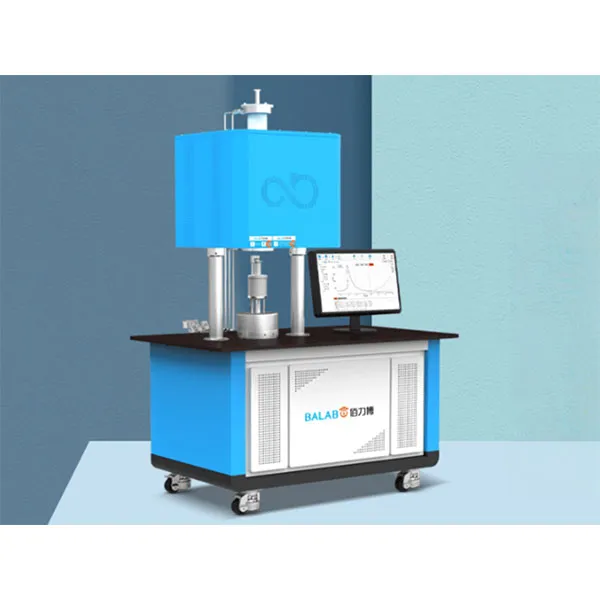

MatMeas DMS1650 Ultra-High Temperature Dielectric Impedance Spectrometer is an integrated system specifically developed for studying the electrical properties of dielectric materials under ultra-high temperature conditions.

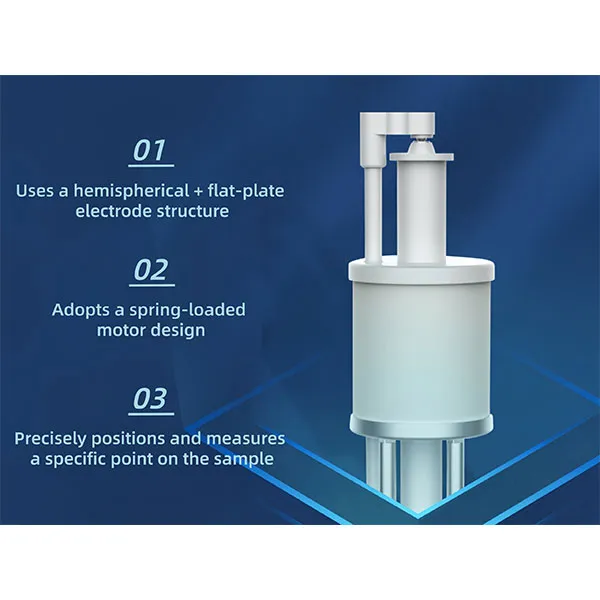

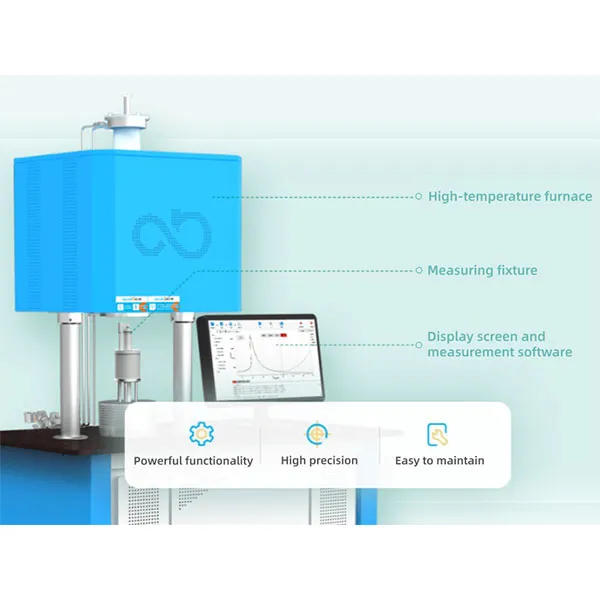

The instrument combines a high-temperature furnace, precision measurement fixture, advanced control software, and an integrated display system into a compact platform. Based on the parallel-plate capacitor measurement principle, the system enables accurate characterization of dielectric constant, dielectric loss, and impedance spectroscopy over a wide temperature and frequency range.
The system supports testing under ambient atmosphere, high-temperature conditions, vacuum environments, and controlled gas atmospheres, allowing researchers to investigate the dielectric behavior of materials as a function of temperature, frequency, and time.
With its stable temperature control system and integrated design, the DMS1650 provides reliable and repeatable dielectric measurements for ceramic materials, electronic components, and advanced functional materials. It is widely used in universities, research institutes, and industrial laboratories for dielectric material research and development.
DMS1650 Ultra-High Temperature Dielectric Impedance Spectrometer Technical Specifications
| Parameter | Specification |
| Temperature Range | Room Temperature ~ 1600°C |
| Temperature Control Accuracy | ±3°C |
| Temperature Control Method | PID Precision Control |
| Heating Rate | 0–10°C/min (Typical 3°C/min) |
| Frequency Range | ~20 Hz – 1 MHz |
| Measurement Accuracy | Dependent on the specifications of the connected impedance analyzer. |
| Measurement Principle | Parallel Plate Capacitor Method |
| Measurement Channel | Single Channel |
| Sample Size | Diameter < 20 mm, Thickness < 5 mm |
| Electrode Material | Platinum Electrodes (Top and Bottom) |
| Measurement Environment | Flowing Gas Atmosphere |
| Operating Temperature | 5 °C – 40 °C |
| Power Supply | 220 V / 60 Hz ~ 4800 W |
| Dimensions | 1260 x 760 x 1727mm(LxWxH) |
| Weight | 200kgs |
| Warranty | 1 Year |
Get a Quote for MatMeas DMS1650
Share your sample type and temperature/frequency requirements—we will recommend the best configuration and testing workflow.
MatMeas DMS1650 system is Typical Applications
1. Dielectric Ceramic Materials
Characterization of dielectric properties of ferroelectric ceramics, piezoelectric ceramics, and microwave dielectric materials.
2. Electronic Component Materials
Evaluation of dielectric performance in capacitors, insulating materials, and electronic substrates.
3. Functional Oxide Materials
Study of dielectric response of perovskite materials and advanced oxide ceramics at elevated temperatures.
4. Energy Storage Materials
Investigation of dielectric behavior in high-temperature energy storage ceramics and dielectric capacitor materials.
5. Academic Research
Widely used in universities and research institutes for advanced dielectric materials research.
