MatMeas CR2630 High Vacuum Leak Detector Portable Glow Discharge Tester for Glass Tube Sealing
MatMeas CR2630 High Frequency Spark Vacuum Leak Detector utilizes the glow discharge principle to quickly assess the vacuum pressure inside sealed glass tubes by observing fluorescence color, referencing a vacuum spectrum standard for instant and convenient leak detection.
1. Versatile Tube Compatibility: Comes with an adjustable tube holder, compatible with tubes of various sizes (outer diameter 1~50mm).

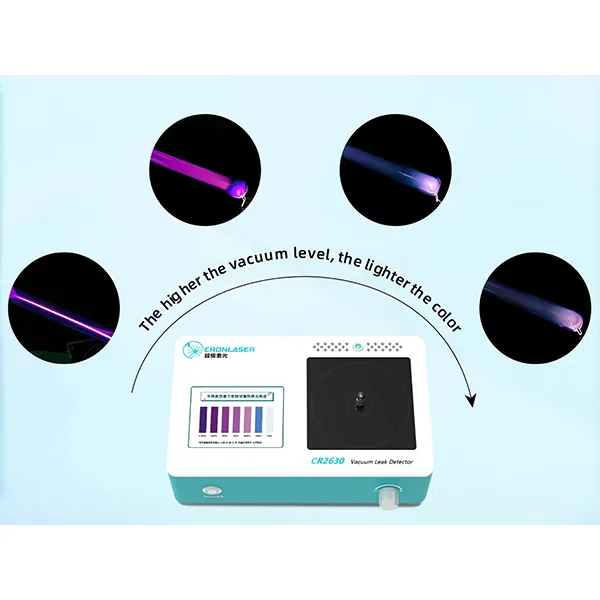

2. Intuitive Vacuum Analysis: Allows for rapid judgment of sealing quality and vacuum pressure range by comparing observed fluorescence against a shared vacuum spectrum standard.

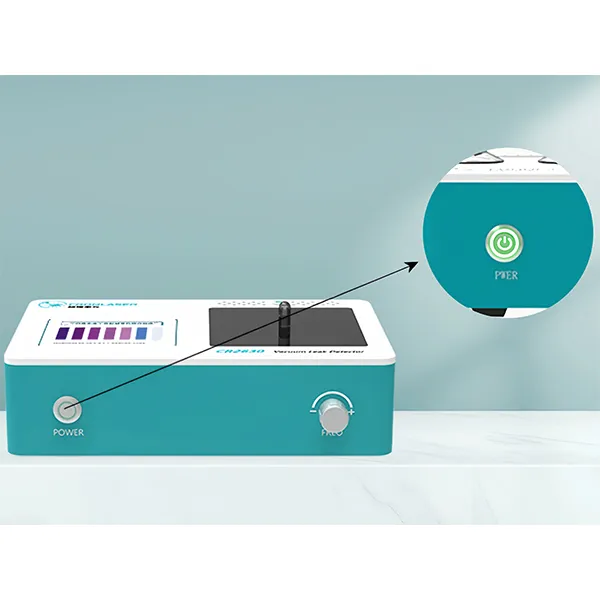

3. Real-time Working Indicator: Features a high-voltage discharge indicator light for clear, real-time feedback on operational status.

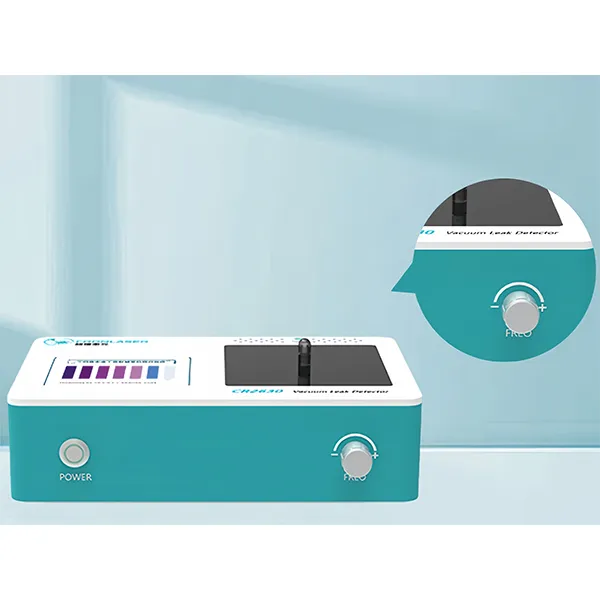

4. Compact & Integrated Design
MatMeas CR2630 High Frequency Spark Vacuum Leak Detector Description
As a professional manufacturer and supplier, we offers the MatMeas CR2630 High Frequency Spark Vacuum Leak Detector. This device is specifically designed for non-destructive vacuum testing of glass, quartz, and other insulating ampoules and tubes. It generates a high-frequency, high-voltage spark to excite gases inside the vessel, causing a glow discharge. By observing the color and intensity of the glow, operators can instantly determine the vacuum level against a standard spectrum. The CR2630 solves the inefficiency of traditional methods, providing a quick, safe, and reliable factory-calibrated solution for quality control in laboratories and production lines.
MatMeas CR2630 High Vacuum Leak Detector Technical Specifications
| Parameter | Value |
| Detection pressure | 10-4Pa~0.1MPa |
| Testing tube | outer diameter of 1-50mm |
| Power Supply | 220 V, 50/60 Hz,100W |
| High voltage | >150KV |
| Frequency | 2KHz |
| Equipment Dimensions (L×W×H) | 246mmX174.3mmX89.5mm (L×W×H) |
| Weight | 2kg |
| Warranty | 1 Year |
Get a Quote for Your Vacuum Testing Needs
Contact us for factory-direct pricing, technical support, and fast delivery.
Applications of MatMeas CR2630 Spark Vacuum Leak Detector
1. Scientific Research Laboratories: For verifying vacuum integrity in experimental glass setups.
2. Tube & Bulb Manufacturing: Quality control for neon signs, fluorescent lamps, electronic tubes, and cathode ray tubes.
3. Pharmaceutical & Biomedical: Vacuum inspection of vaccine vials, ampoules, and freeze-drying tubes.
4. Solar Industry: Testing the vacuum of solar collector tubes.
More Details
Why choose the MatMeas CR2630 ?
- Efficiency: One-click operation allows for rapid, batch testing of sealed tubes.
- Safety: The remote switch and insulated high-voltage technology protect the operator from electric shock.
- Reliability: The integrated design and working indicator ensure consistent and dependable performance.
- Accuracy: By sharing a standardized vacuum spectrum, it minimizes subjective errors in judging vacuum quality.
