MatMeas Automatic High Voltage Polarization System for Piezoelectric Ceramics – MPT Series
MPT high‑voltage polarization system enables automatic oil‑bath polarization of piezoelectric ceramics with high safety, intelligent control and efficient batch processing.
- Intelligent fully automatic polarization control
- Multi‑channel independent high‑voltage output
- Real‑time monitoring of voltage, current, temperature and polarization status
- Integrated safety interlock and breakdown protection system
- High efficiency batch polarization for research and industrial labs

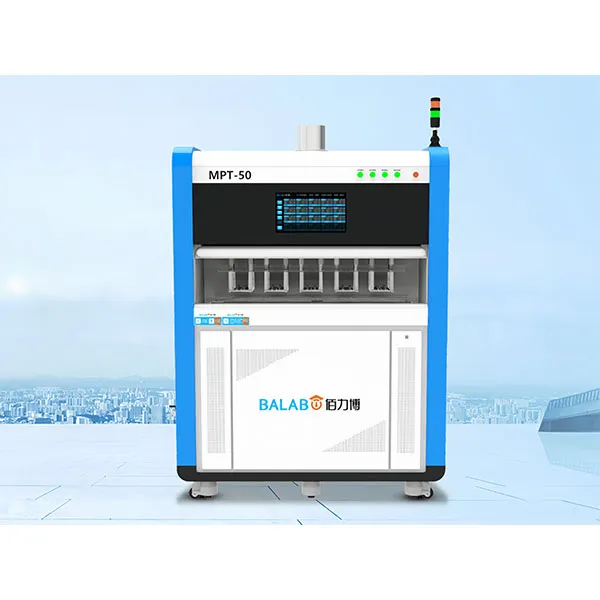

MatMeas MPT High Voltage Polarization System Description
The MPT Series High Voltage Polarization System from MatMeas is designed for automatic polarization of piezoelectric ceramic materials. The system integrates intelligent control, multi‑channel independent polarization and precise temperature management to ensure stable experimental conditions. It enables researchers and manufacturers to efficiently determine optimal polarization parameters while improving production efficiency and safety. This equipment is widely used in materials science laboratories, piezoelectric ceramic research institutes and electronic component manufacturing facilities.
MPT Polarization System Technical Data Sheet
| Parameter | Value |
| Polarization Method | Oil Bath Polarization |
| Sample Capacity | 0–100 Samples |
| Polarization Voltage | Up to 10 kV |
| Polarization Current | 1 mA per channel maximum |
| Voltage Output Accuracy | ±5 % |
| Minimum Detection Current | ≥100 nA |
| Temperature Range | RT – 180 °C |
| Temperature Control Accuracy | ±3 °C |
| Temperature Control Method | PID Precision Temperature Control |
| Heating Rate | 3°C/min, 6°C/min, 9°C/min |
| Sample Material | Bulk or Thin Film Piezoelectric Ceramics |
| Sample Size | Diameter <10 mm, Thickness <3 mm |
| Equipment Dimensions | 1420 × 558 × 2041 mm |
| Power Supply | 220 V / 50–60 Hz, 3800 W |
| Weight | 447 kg |
| Warranty | 1 Year |
MatMeas High Voltage Polarization System Applications
- Piezoelectric ceramic polarization research
- Ferroelectric material development
- Electronic component manufacturing
- Materials science laboratories
- University and research institute experiments
MPT High Voltage Polarization System Video
Warning: Trying to access array offset on value of type null in /www/wwwroot/matmeas.com/wp-content/plugins/elementor/includes/widgets/video.php on line 1203
More Details

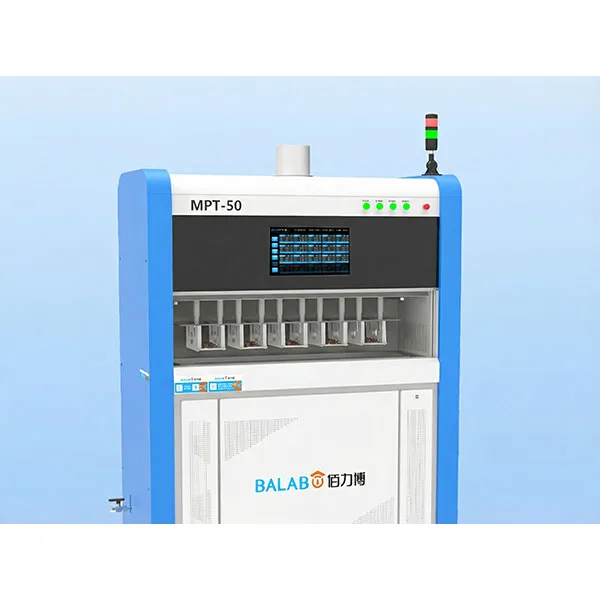

MPT Polarization System Features
The MPT intelligent high voltage polarization system supports automatic multi‑channel polarization of piezoelectric ceramic samples. Each channel operates independently, allowing simultaneous polarization of multiple samples without interference.

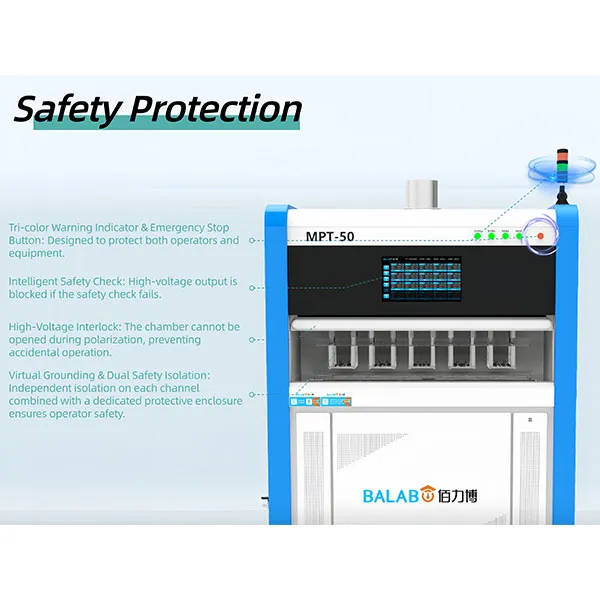

MPT Safety Protection Technology
The system integrates advanced safety interlock mechanisms, breakdown protection and automatic self‑inspection. Before the polarization process starts, the system performs a safety check to ensure safe operation for both operators and equipment.
MPT Intelligent Control System
Researchers can monitor polarization voltage, polarization current, temperature and processing time in real time through the intelligent control interface. All polarization data and process parameters are automatically recorded for further analysis and optimization.
