MatMeas ARVS Series Automated Vacuum Tube Sealing – Test Tube Sealer System
The MatMeas ARVS system is widely used in automated vacuum sealing where sterility, repeatability, and batch processing are critical.
1. High-Throughput Batch Sealing: Up to 100 tubes sealed per cycle; <10 s per tube.
2. Robotic Handling System: High-precision XYZ module for automatic loading/unloading.
3. 2800 °C HHO Flame Fusion : Electrolytic hydrogen-oxygen flame ensures rapid, bubble-free sealing.
4 Multi-Material Compatibility: Suitable for borosilicate, high-borosilicate, and quartz tubes.
5. Intelligent Automation Control: Touchscreen UI with real-time process monitoring and alarm system.

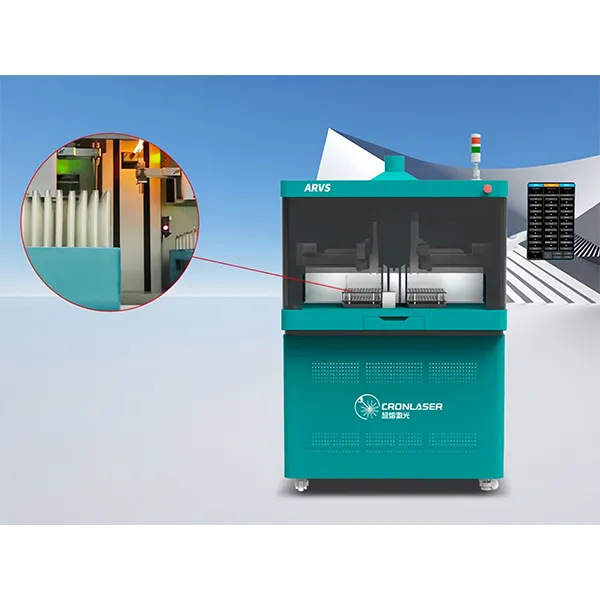

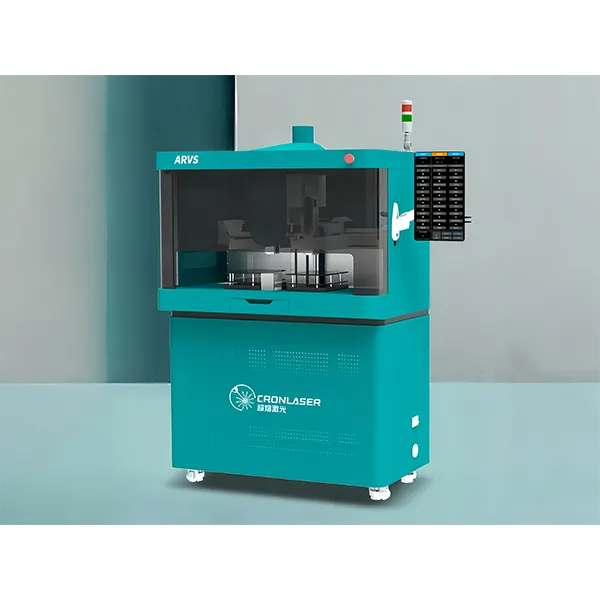

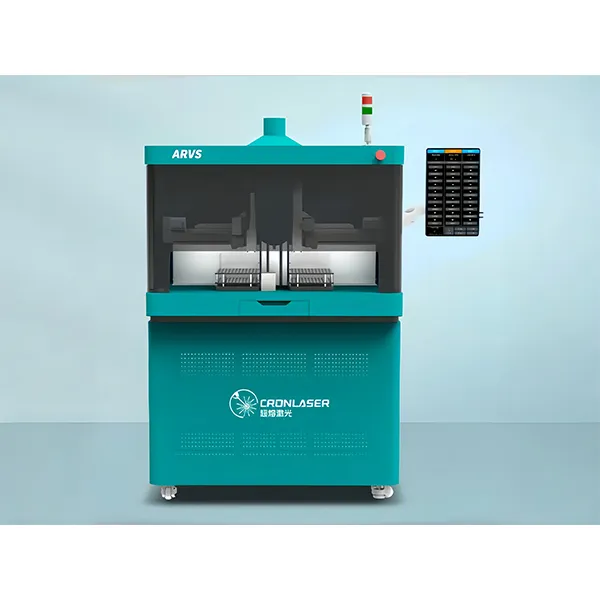

MatMeas ARVS Series Automated High-Throughput Flame Tube Seal Machine
The MatMeas ARVS Series Automatic Vacuum Tube Sealer is designed for high-efficiency glass test tube sealing and bio-sample preservation.
By integrating robotic loading/unloading, rotary vacuum sealing, and 2800 °C HHO flame fusion, the system enables fully automated, contamination-free encapsulation.
Compared with manual sealing, ARVS significantly improves throughput, sealing consistency, and biosafety while reducing operator workload and human error.
It is an ideal solution for laboratories and enterprises requiring standardized, large-batch tube sealing and microbial strain preservation.
MatMeas ARVS Series Automatic Vacuum Tube Sealer
| Workstation Configuration | 100 Tubes |
| Quartz Tube Dimensions | Φ6mm, Φ7mm, Φ8mm |
| Wall Thickness: | 1 mm |
| Sealing Flame Type: | Hydrogen-Oxygen (HHO) Flame |
| Flame Temperature: | 2800 °C |
| Operating Temperature (Ambient): | 5 – 40 °C |
| Sealing Time (Per Tube): | Adjustable, approx. 10 s per tube |
| Vacuum Level： | < 0.05 MPa |
| Sampling / Handling Method: | Automatic Robotic Arm |
| Compatible Sample Types: | Quartz Tubes, Ampoules, Lyophilization Tubes, Borosilicate Glass Tubes |
| Positioning Accuracy: | ± 0.05 mm |
| Accessories Included: | Sample Racks, Nitrogen Cooling System |
| Power Supply: | 220 V, 50/60 Hz |
| Power Consumption: | 3255 W |
| Equipment Dimensions (L×W×H) | 720 × 11000 × 1600 mm |
| Warranty | 1 Year |
| Ordering Information | ARVS1001 – Vacuum Level < 0.05 MPa |
| ARVS1002 – Vacuum Level < 100 Pa | |
| ARVS1003 – Vacuum Level < 0.01 Pa |
Get Free Quote of MatMeas ARVS Series Automated Vacuum Tube Sealing
MatMeas ARVS Series Automated Vacuum Tube Sealing. Contact us today for advanced sealing tech.
Applications in Bio-Preservation & Materials Sealing
Microbial strain preservation
Pharmaceutical ampoule flame sealing
Medical thermometer sealing
One-dimensional material synthesis
Two-dimensional material encapsulation
